PERI pave production pallet for the paving industry.

PERI Pave

The production pallet for the paving industry

The next generation of PERI Pave offers our customers less concrete buildup and less cleaning effort. The new PERI Pave features an integrated separating effect.  Additives in the plastic coating of the multiplex boards enable concrete products even with a high w/c value to adhere significantly less to the production pallet. The same applies to the stone sealant, which until now has often built up on the boards.

PERI Pave also offers optimum load-bearing capacity, special surface hardness for durability and abrasion resistance. Industrial production of concrete blocks is based on repeating high standards of manufacturing consistently over time even during times of high throughput. PERI Pave production pallets with their high performance are a reliable component of international manufacturing of concrete blocks.

The structure of the PERI Pave
The multiplex core is produced through the cross-bonding of high-quality hard wood veneers from sustainably managed forests. The polypropylene coating, which has been especially developed for high utilisation in concrete block manufacturing plants, offers high impact and abrasion resistance and ensures the longevity of the PERI Pave production pallets.




PERI Pave in action

  • PERI Pave production pallets are carried out at a technically high quality level for a smooth stone survface.
    Effective and cost-saving utilisation

    The low net weight of the PERI Pave production pallet leads to energy savings during the transportation through the machine cycle. Cycle times are reduced as there are no withdrawal plates, so this increases the efficiency of production.

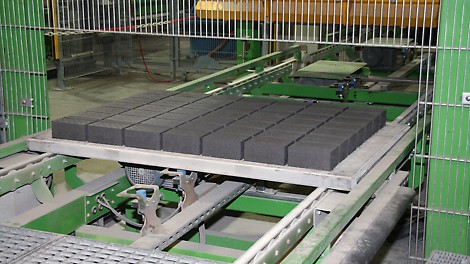

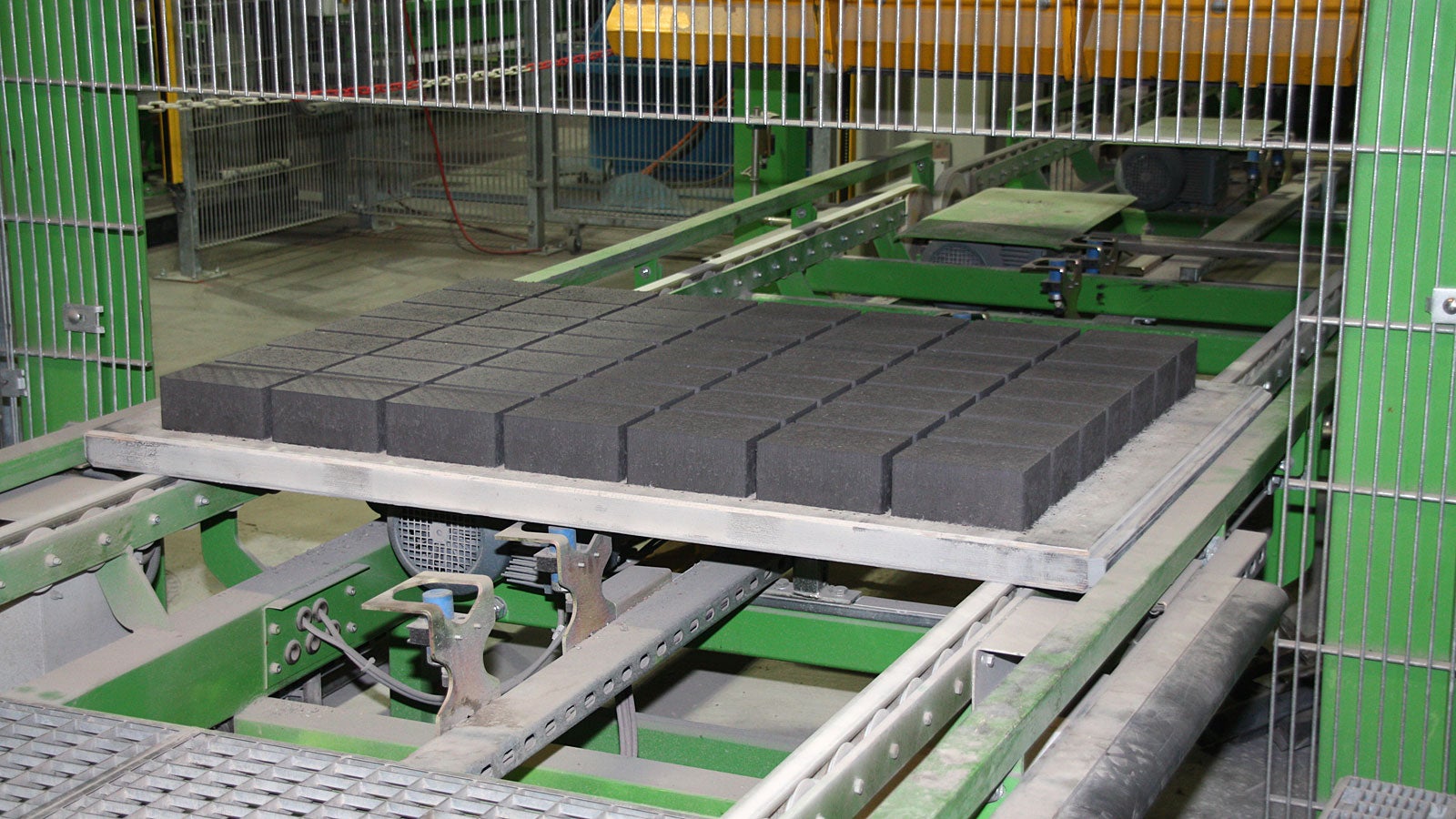

  • Pave production pallets from PERI are made of multiplex for high load-bearing capacity with low net weight.
    Minimal deflection

    Even under high loads, PERI Pave pallets show minimal deflection due to the load-bearing core. The thickness of the pallets is adjusted to the production conditions of each customer. Even after many years of use, the deflection will not exceed the required maximum.

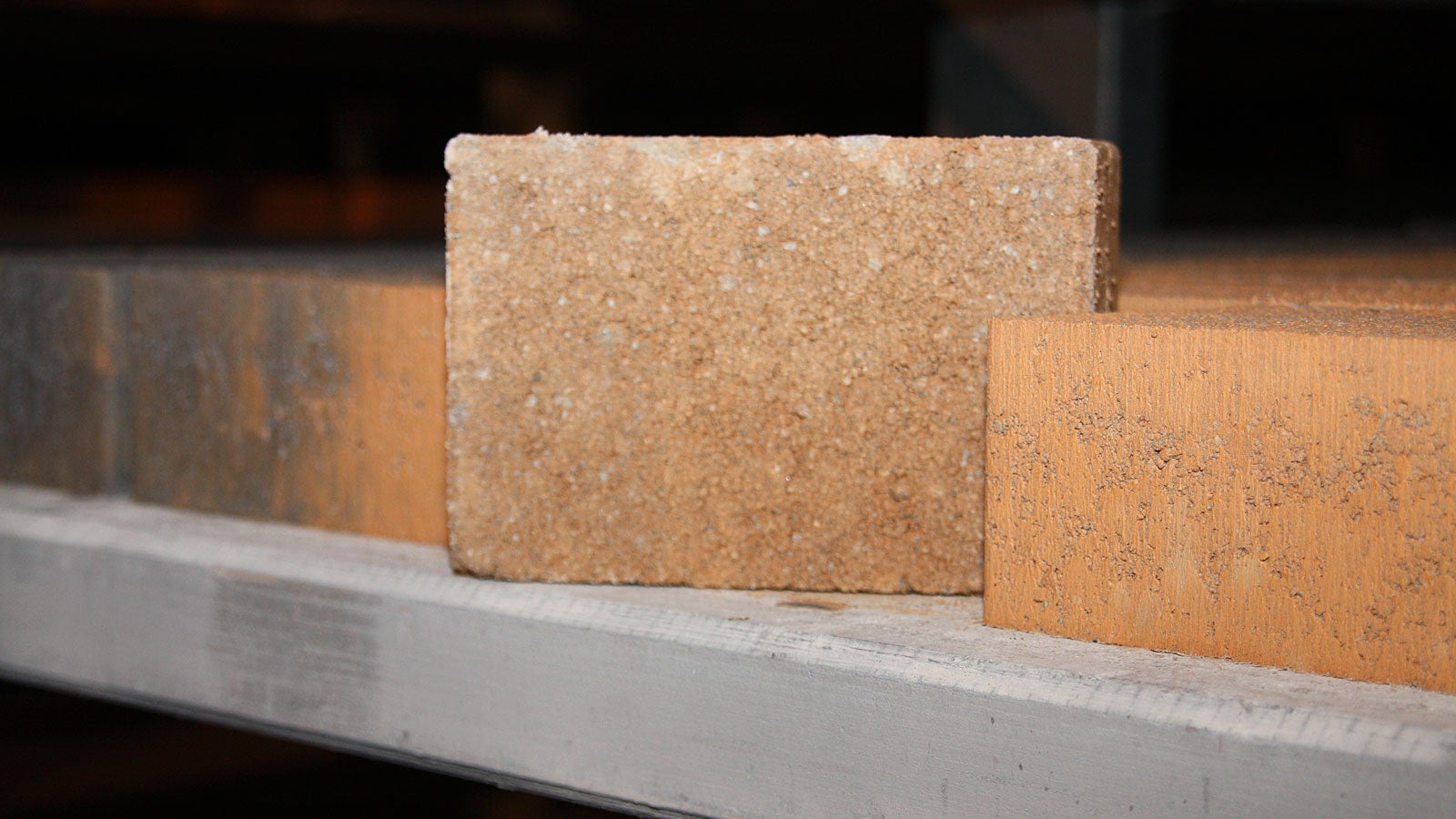

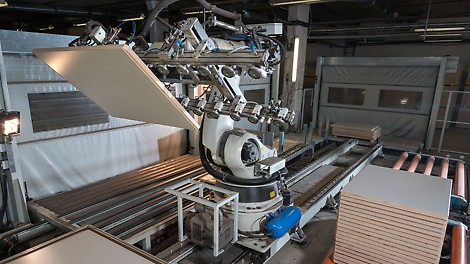

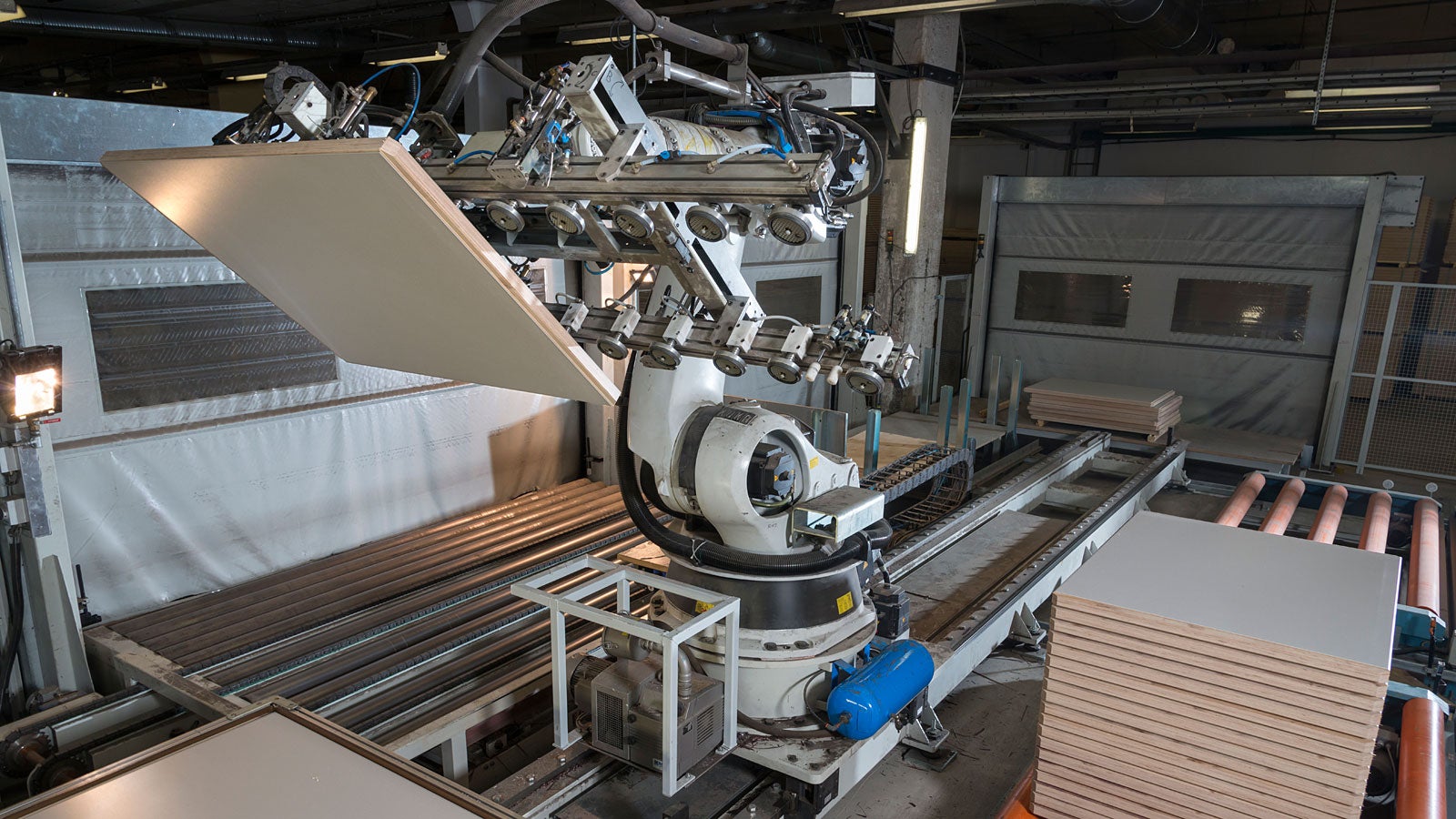

  • Production of the PERI Pave production pallets is carried out at a technically high quality level.
    Excellent compaction characteristics

    Due to the homogenous and high quality construction of the pallet, high production performance is guaranteed time after time across the entire panel

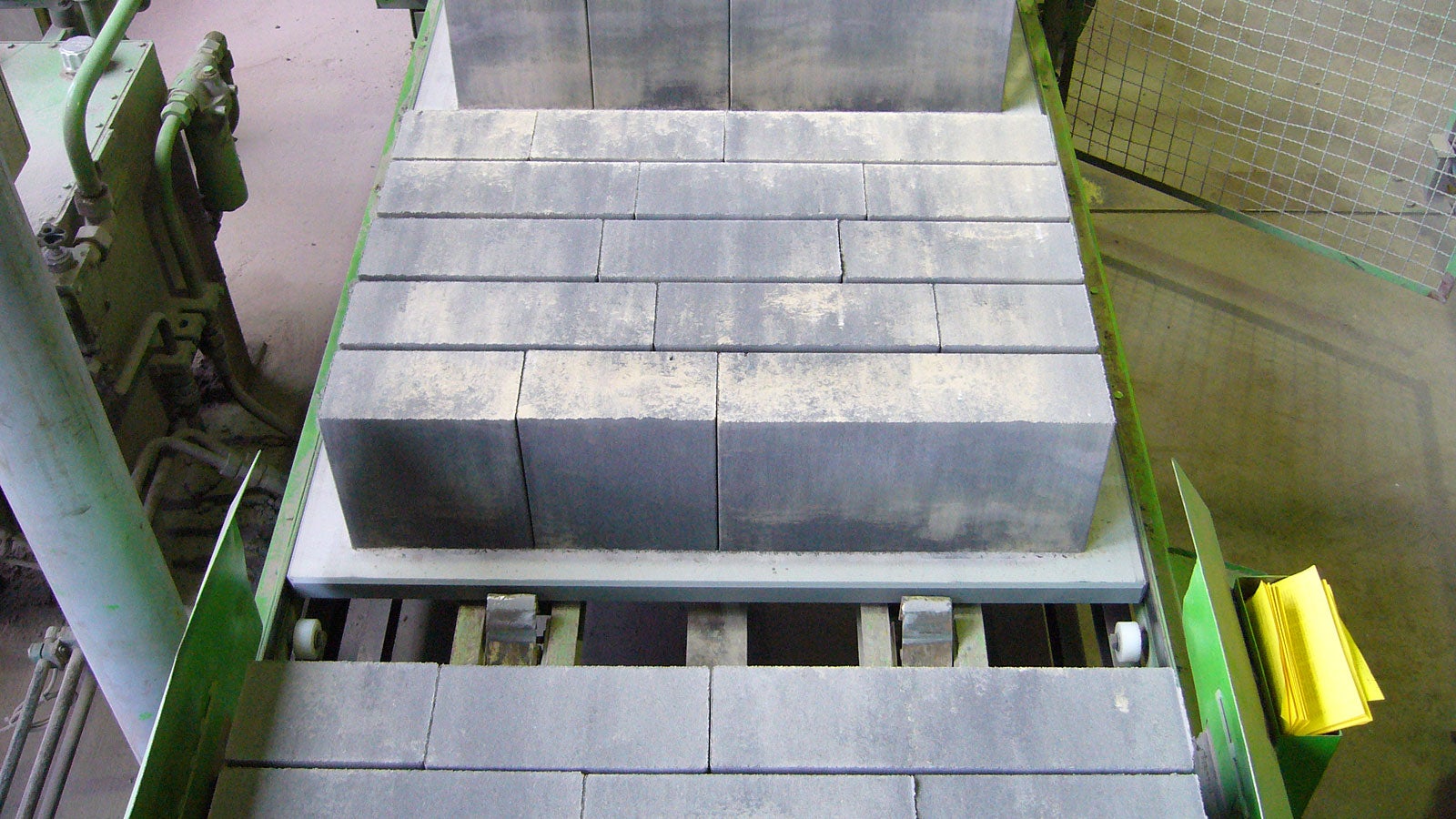

  • The low net weight of the PERI Pave production pallet leads to energy savings during the transportation through the machine cycle.
    Consistent performance provides consistent concrete block quality

    The performance of the PERI Pave production pallet are maintained over a long period of time – even in high humidity or air-conditioned environments as well as during the production of washed concrete products.

Product Data Sheet

Accessories

For the PERI Pave range

PERI Pave Release

Release agent for the cleaning of production pallets which are used with earth-moist concrete in the paving industry.

PERI Pave Brush

Half-shell brush with nylon bristles for the cleaning of the production pallets

  • easy to exchange due to the half-shell design
  • there are only minimum downtimes when exchanging the brushes
  • the shaft remains, only the half-shells are exchanged
  • no absorption of water and thus higher dimensional accuracy

Bristles from nylon (Poly PBT black)
Diameter of bristles: 2.0 mm
Height of bristles: about 40 mm x 50 mm
Material of the body: PP 20% GF
Maximum revolutions: about 250 – 300 rpm
A shaft has to be pre-drilled once according to a drawing.

PERI Pave Repair kit

Mechanical damage to the Pave surface can be repaired easily and fast with our repair kit.

PERI Pave Spraying system

The release agent can be spread evenly on the pallet with individually adjustable spraying nozzles.

Interested in using PERI Pave for your next project?

Contact us – we will be happy to help you.
